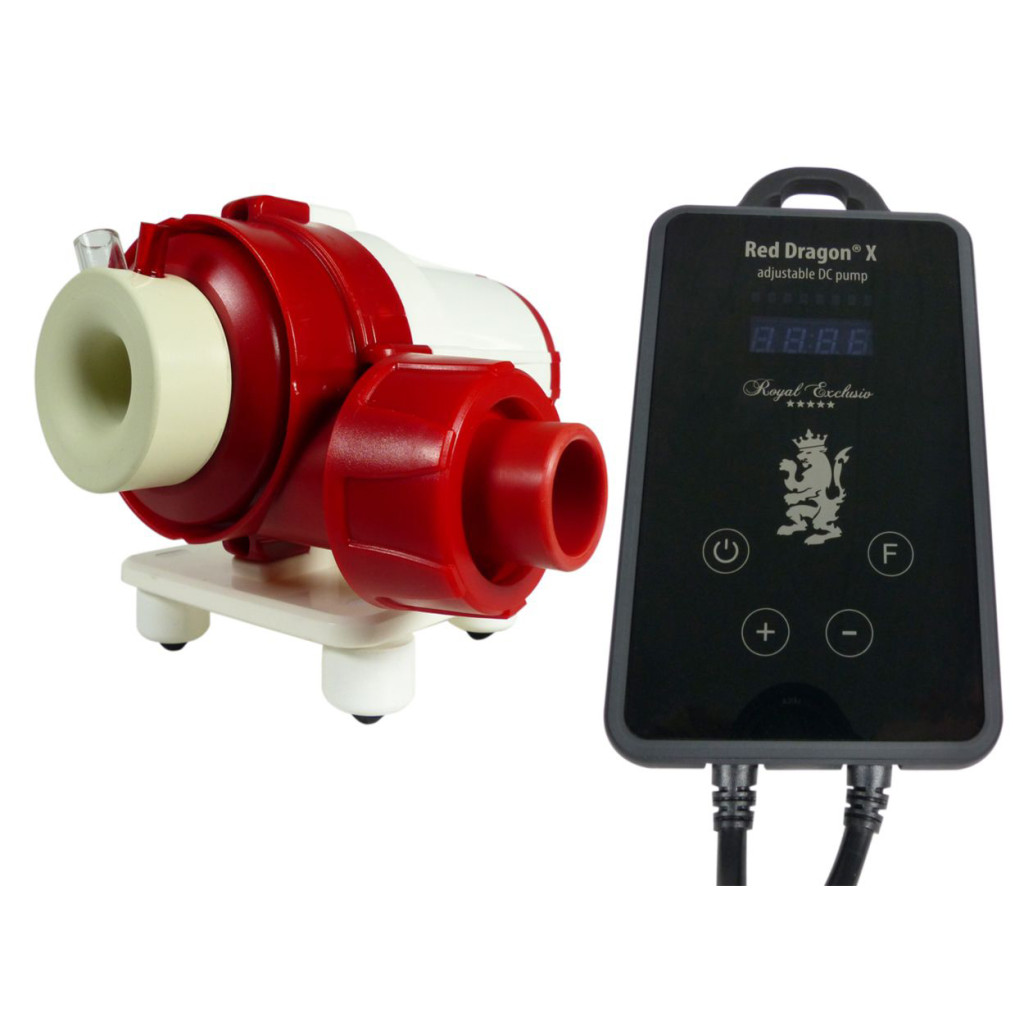

A Red Dragon X pump specifically designed for Royal Exclusiv Bubble King skimmers
The Red Dragon X 50W was developed by Royal Exclusiv to meet the requirements of Bubble King skimmers, renowned for their build quality and effectiveness in marine aquariums. Its role is essential: it simultaneously draws in water and air to feed the skimmer and generate the fine bubbles necessary for separating organic matter from the water.
With a suction capacity of up to 1500 liters of air per hour and a maximum hydraulic flow rate of 4000 liters of water per hour , this pump provides the performance necessary for the operation of compatible protein skimmers. It helps produce a consistent foam, essential for collecting organic matter before it decomposes in the aquarium.
The Red Dragon X is therefore an interesting solution for replacing a worn or defective skimmer pump , while retaining the operating characteristics intended for the relevant Bubble King models.
24V Brushless Technology: a powerful and exceptionally quiet skimmer pump
Quiet operation is one of the key advantages of this Royal Exclusiv Red Dragon X pump . Its brushless DC motor benefits from a low-voltage 24V power supply and electronic control using sinusoidal wave technology. This design promotes smooth motor rotation while minimizing vibration and mechanical noise.
To further improve acoustic comfort, Royal Exclusiv has equipped the pump with parabolic rubber feet . These provide decoupling between the pump and its support, thus reducing the transmission of vibrations into the sump and the aquarium cabinet.
Its compact construction also contributes to the overall stability. This attention to acoustics is particularly appreciated when the reef aquarium is installed in a living room, where the slightest hum can quickly become bothersome.
Adjustable power from 15 to 50 W to precisely adapt the skimmer's operation
Every reef aquarium has its own unique skimming requirements. The fish population, feeding frequency, amount of coral, and organic load directly influence the amount of waste to be removed. That's why the Red Dragon X 50W features adjustable power output between 15 and 50 watts .
The electronic speed control allows adjustment of the pump's operation and the skimmer's air and water supply. This enables the user to find the best balance between skimming efficiency, foam stability, and power consumption.
The pump comes with an external controller featuring a touchscreen . This allows for easy adjustments without having to directly access the pump installed in the sump. It also includes a feeding pause function , useful for temporarily stopping the skimmer's operation during feeding or maintenance.
A robust design suitable for permanent use in a marine aquarium
The Royal Exclusiv Red Dragon X was designed to withstand the rigors of a particularly demanding environment: seawater. Its fastening elements include M4 grade 2 titanium screws , chosen for their excellent corrosion resistance in saline environments.
The hydraulic design also prioritizes ease of maintenance, with a reduced risk of limescale buildup. However, as with any pump used in a marine aquarium, periodic cleaning of the rotor and water passages is still recommended to maintain original performance and prevent the accumulation of limescale deposits.
The pump has an IP68 rating , suitable for submerged operation. The external control box has an IP66 rating , offering protection against dust and water jets. However, it must remain installed out of the water, in a suitable location.
The electronic system incorporates several safety devices designed to protect the equipment against abnormal situations, including dry running, overheating, overvoltage, and rotor blockage . These protections help to preserve the pump during daily use.
Royal Exclusiv Red Dragon X pump compatible with Bubble King skimmers
This version of the Red Dragon X 50W is designed for several skimmers in the Royal Exclusiv range. It is particularly suitable for the following models:
- Mini Bubble King 200 VS21
- Bubble King Double Cone 180
- Bubble King Double Cone 200
- Bubble King SuperMarin 200
- Bubble King Deluxe 200
The pump features a suction nozzle with connections for air and ozone , as well as an outlet equipped with a 32 mm diameter reducing ring. 25 mm and 32 mm silicone connection and decoupling elements are also included for easy integration.
Before replacing an existing pump, it's important to check the exact model, the skimmer generation, and the fitting configuration . Some Bubble King skimmers may require a specific connector to ensure a proper fit.
Technical specifications of the Royal Exclusiv Red Dragon X 50W
The pump combines technical characteristics suitable for continuous operation on a marine skimmer, while maintaining a relatively compact size for its level of performance.
- Brand: Royal Exclusiv
- Model: Red Dragon X Skimmer Pump 50W
- Type: Electronic pump for marine aquarium skimmer
- Motor technology: Sinusoidal-controlled brushless DC
- Motor voltage: 24V DC
- Mains power supply: 230V / 50Hz
- Adjustable power: 15 to 50 W
- Maximum power: 50 W
- Maximum airflow: 1500 l/h
- Maximum water flow rate: 4000 l/h
- Output: 32 mm diameter reduction ring
- Suction: nozzle with air and ozone connections
- Pump protection rating: IP68
- Controller protection rating: IP66
- Pump dimensions: approximately 190 x 110 x 150 mm
- Controller dimensions: approximately 90 x 20 x 170 mm
- Pump weight: 2.3 kg
- Fasteners: M4 grade 2 titanium screws
- Control: external touch controller with feeding pause function
- Safety features: protection against dry running, overheating, overvoltage and blockage
Kit contents and accessories included with the Red Dragon X pump
The Royal Exclusiv Red Dragon X 50W comes with all the necessary components for its power supply and operation. The kit includes the pump with its 2-meter cable, a touchscreen electronic controller with a 1.5-meter cable, and a power supply with a 1.5-meter cable and rubber connector.
A suction nozzle equipped with air and ozone connections is also supplied, along with the appropriate connection elements, including 25 mm and 32 mm silicone decoupling fittings . An instruction manual in German and English is included.
Thanks to its connections designed for compatible skimmers, its accessible controller and its design facilitating maintenance operations, this pump allows you to restore efficient operation of the Bubble King skimmer without complicating usual maintenance procedures.
