A grounding probe designed for reef aquariums
A modern reef aquarium can house a large number of electrical devices: circulation pumps, return pumps, heaters, protein skimmers, dosing pumps, and filtration equipment. Even when these devices are operating normally, they can generate low induced electrical voltages in the water .
The RED SEA ReefControl grounding probe was developed to provide a safe path for stray voltages to ground. Once connected to the ReefControl Power , it helps maintain the aquarium's electrical system in a safer condition.
Why can stray voltages appear in a marine aquarium?
Seawater is naturally very conductive due to its high concentration of dissolved salts. The electric fields produced by certain equipment can therefore create measurable residual or induced voltages in the aquarium water.
In many cases, these voltages are low and simply result from the normal operation of motors and electrical devices. However, they can become more significant when equipment has an insulation fault. The presence of a grounding probe allows these stray voltages to be channeled in a controlled manner .
Additional protection against submerged electrical equipment
Pumps and heaters generally operate continuously in direct contact with water. Over time, deterioration of a cable, seal, or electrical component can cause a current leakage greater than the usual simple induced voltages.
The RED SEA ReefControl Grounding Probe provides an additional safety measure . When properly connected to the Red Sea system, it allows for the dissipation of voltages present in the water to the ground.
However, it remains essential to check the installation when an unusual voltage is detected. A grounding probe does not transform a faulty device into safe equipment: any equipment exhibiting an electrical leak must be identified and replaced .
A titanium tip perfectly suited to seawater
The submerged part of the probe is made of corrosion-resistant titanium . This material is particularly well-suited to the aggressive environment of a marine aquarium, where many conventional metals can oxidize rapidly in contact with salt water.
Titanium thus ensures excellent durability while maintaining the necessary electrical contact between the aquarium water and the grounding device. This design also avoids the use of a metal that can degrade rapidly when permanently submerged.
A weighted probe that remains properly submerged
For proper operation, the conductive tip must remain in constant contact with the water. Red Sea therefore designed this probe with a weighted section that naturally keeps the titanium tip underwater .
It can therefore be easily placed in the settling tank or in a suitable area of the system without the need for complex installation. This design reduces the risk of the probe rising to the surface or losing contact with the water due to pump movements.
Compatible with the RED SEA ReefControl Power
The R35828 grounding probe is designed for use with the RED SEA ReefControl Power . It connects directly to the dedicated port on the device, allowing for a clean and integrated installation within the ReefControl system.
This compatibility allows you to easily add a grounding function to an installation already equipped with the Red Sea connected ecosystem, without having to make complex modifications to the aquarium wiring.
A solution to limit electric sensations upon contact with water
Sometimes, an aquarist may feel a slight tingling or a small shock when they put their hand in the water. This phenomenon can be linked to stray voltage generated by electrical equipment , such as a pump or heater.
The ReefControl grounding probe reduces this type of voltage by providing a path to earth. However, if an electrical sensation is felt in the aquarium, it is still essential to locate the source of the problem, as this could indicate damaged equipment that needs replacing.
A particularly useful safety component on complex installations
The more electrical equipment an aquarium contains, the greater the number of potential sources of induced voltage. Reef tanks with multiple pumps, heaters, skimmers, and electrical accessories are therefore particularly affected.
The RED SEA ReefControl probe provides an additional layer of security that is easy to set up . It is suitable for both home reef aquariums and larger technical installations using numerous submerged devices.
Installation of the RED SEA ReefControl grounding probe
The setup is simple: the part equipped with the titanium tip must remain submerged , while the cable is connected to the dedicated grounding port of the ReefControl Power.
The probe can be positioned in an area where the water level remains stable, for example in the sump. Its weighted design helps to keep the conductive part correctly submerged during aquarium operation.

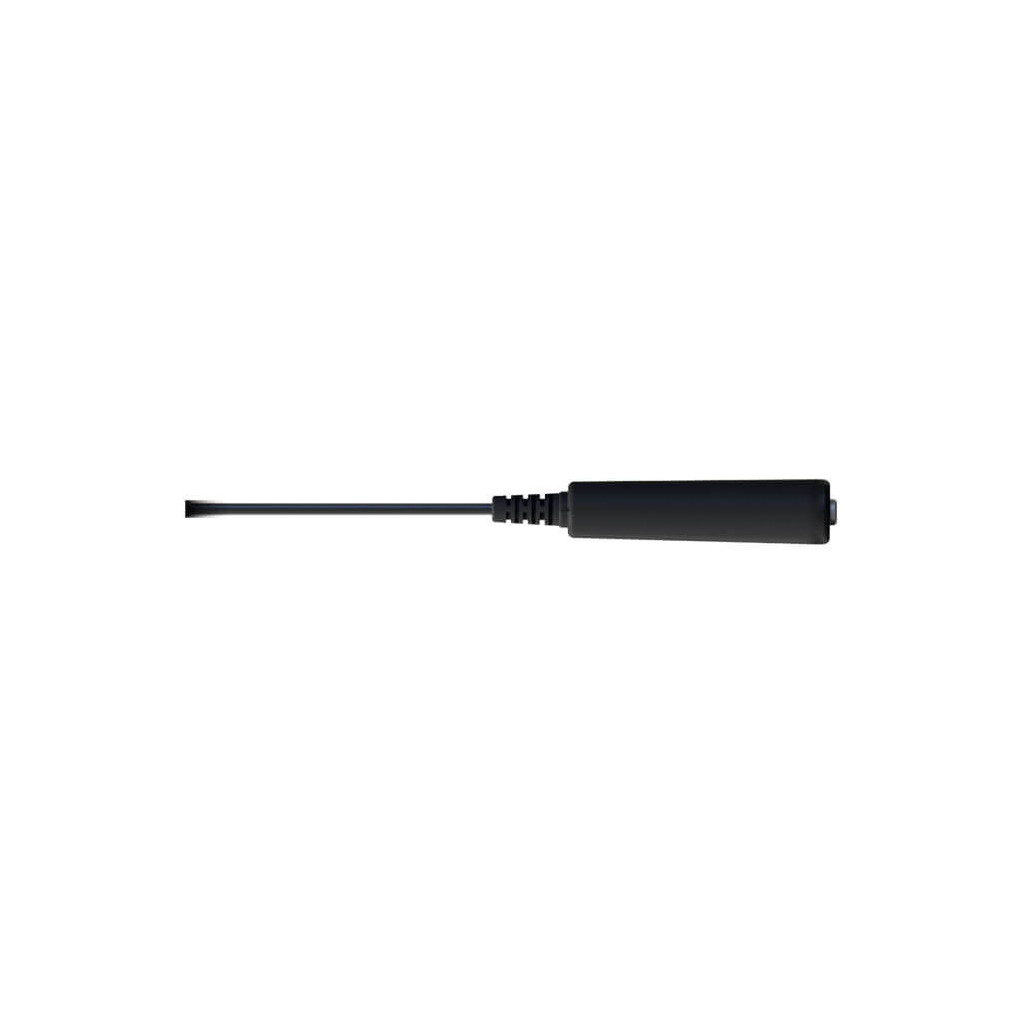

Features of the RED SEA ReefControl Grounding Probe R35828
- Manufacturer reference: R35828 .
- Type: Grounding probe for marine and reef aquariums.
- Compatibility: RED SEA ReefControl Power .
- Immersed titanium electrode, corrosion resistant .
- Weighted design to keep the conductive tip underwater.
- Allows you to neutralize stray voltages coming from electrical equipment.
- Particularly suitable for voltages generated by pumps, heaters and submerged appliances.
