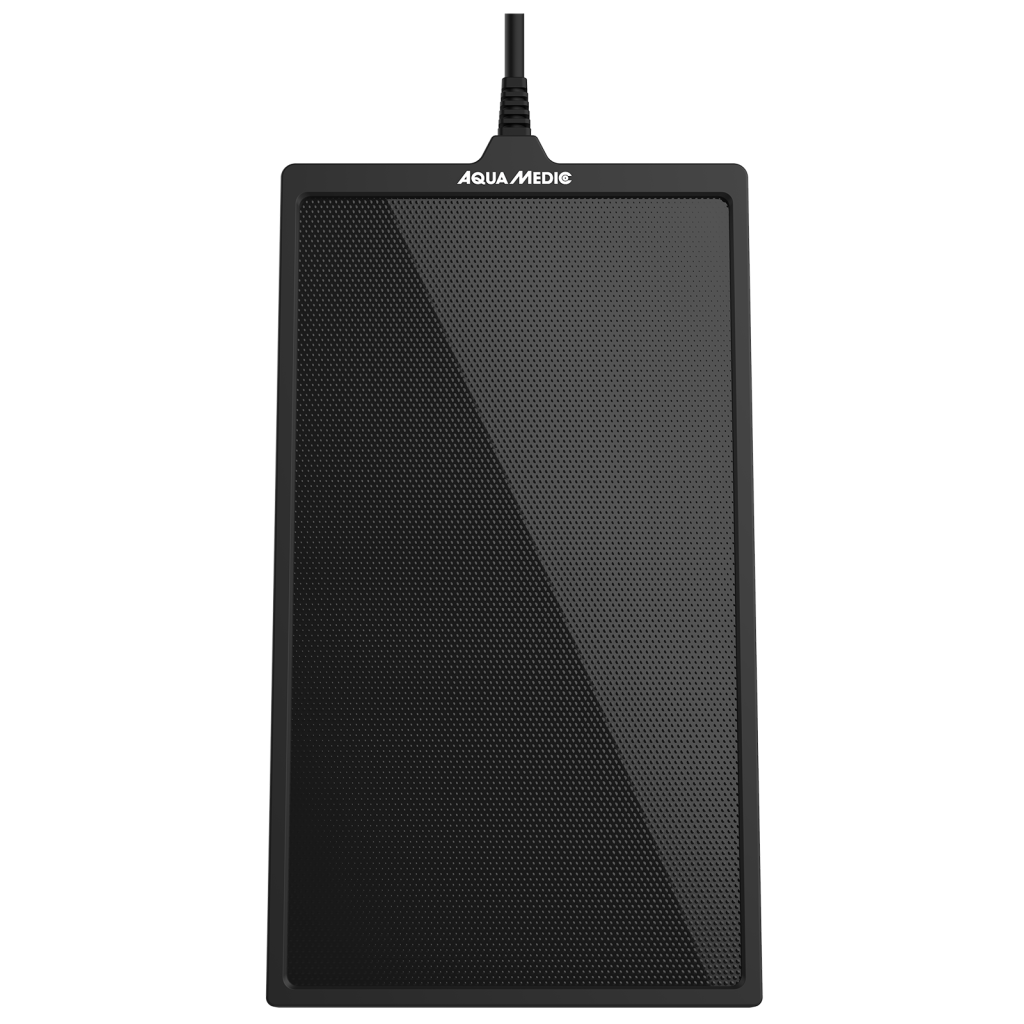

A 1000W infrared heater for very large aquariums
The AQUA-MEDIC Ceramic Infrared Heater 1000W is the most powerful version in this range of infrared heaters. It is designed for aquariums with a volume between 2,000 and 3,000 liters , making it particularly suitable for very large marine, reef, or freshwater aquariums.
Rather than concentrating all the heating power in a small tubular element, AQUA-MEDIC uses a large ceramic heating surface . The 1,000 watts are thus distributed over a large area, allowing for a gradual transfer of heat to the water and surrounding elements.
This design is particularly suitable for large installations, where the quantity of water to be kept at temperature makes regular heat distribution and properly sized heating power essential.
Infrared technology inspired by the sun's natural radiation
The Ceramic Infrared Heater uses infrared heating technology developed to replicate some of the thermal radiation naturally present in sunlight. The manufacturer presents this principle as a way to transmit gentle, deep heat to the aquatic environment.
Infrared radiation is not limited to directly heating the water in contact with the heater. It is designed to pass through the water and reach the various elements present in the tank, thus contributing to a more global distribution of heat .
AQUA-MEDIC also indicates that this radiation helps to create conditions favorable to the vitality of fish, invertebrates, corals and aquatic plants , while above all ensuring the essential function of heating: maintaining a stable temperature adapted to the inhabitants of the aquarium.
Even heat distribution throughout the different areas of the tray
Aquariums of several thousand liters typically contain many different zones: rock structures, decorations, roots, technical compartments, or areas subject to varying water flow intensities. In this context, a homogeneous distribution of thermal energy becomes particularly important.
According to AQUA-MEDIC, infrared rays pass through the water and bypass various obstacles to promote even heating. The elements within the aquarium also gradually absorb some of this energy, which helps to distribute heat throughout the tank environment.
Properly sized water circulation remains essential. Combined with the operation of the Ceramic Infrared Heater, it helps to distribute the heated water and reduce temperature differences between the various areas of the system.
A large ceramic plate measuring 293 x 160 mm to diffuse 1000 W
The 1000W model uses a large ceramic surface measuring 293 x 160 mm . This plate is nevertheless only about 16 mm thick , allowing the heater to maintain a particularly flat profile considering its power.
This design allows the 1000 watts of thermal power to be distributed over a wide area. The heat is thus transferred to the water gradually instead of being concentrated in a very small area, as is often the case with conventional tubular heating.
Ceramic was also chosen for its stability and heat transfer properties. It is therefore an essential component of the Ceramic Infrared Heater's operation, complementing the infrared technology used by AQUA-MEDIC.
An efficiency advertised as up to 30% greater than traditional heating systems
AQUA-MEDIC announces that the infrared technology of the Ceramic InfraRed Heater can offer up to 30% greater efficiency compared to traditional heating methods . This optimization is based on how energy is transmitted and distributed in the aquatic environment.
In a 2,000 to 3,000 liter aquarium, the energy consumption required to maintain the temperature can become significant, especially when the room is considerably cooler than the tank water. The efficiency of heat transfer then becomes crucial.
The large ceramic surface and infrared radiation work together to efficiently utilize the available power and promote even heating of the installation.
A powerful heater for freshwater and marine aquariums
The AQUA-MEDIC Ceramic Infrared Heater 1000W is compatible with both freshwater and saltwater aquariums . It can therefore be integrated into a wide variety of setups requiring significant heating capacity.
This version is particularly suitable for large reef aquariums, marine fish tanks, large capacity display tanks, or large freshwater aquariums.
Its advertised operating range of 2,000 to 3,000 liters remains a sizing guideline. The actual power required also depends on the difference between the room temperature and the desired water temperature, the tank's insulation, its open surface area, and the overall installation conditions.
Dry-run protection and IPX8 protection rating
The Ceramic Infrared Heater incorporates a safety feature against dry running . This function provides additional safety when the heater is accidentally disconnected from the water, for example, during a drop in the water level or when working on the system.
The heater also benefits from an IPX8 protection rating and accepts a maximum immersion depth of 1000 mm . It is therefore specifically designed to operate submerged in an aquatic environment.
As with any high-power heating equipment, its positioning must allow good water circulation around the ceramic surface to promote heat dissipation and distribution.
An external temperature regulator is required.
The 1000W Ceramic Infrared Heater acts as a heating element and should never be used alone without a temperature controller . AQUA-MEDIC specifies that heaters in this range must always be used with a thermal control system.
The controller measures the water temperature using its probe and then automatically controls the heating system's power supply. When the temperature drops below the set value, the heating system is activated. Once the desired temperature is reached, its power supply is switched off.
To ensure this regulation, AQUA-MEDIC particularly recommends the optional use of the T controller twin 2.0 . On a heater with a power of 1000 W, it remains essential to check that the controller used is suitable for the electrical power of the device.
A flat design despite a heating power of 1000 W
Despite its particularly high power output, the Ceramic Infrared Heater maintains relatively compact dimensions of approximately 293 x 160 x 16 mm . This shallow depth facilitates its integration into large technical installations.
The heater comes with a suction cup mount for attaching it to a suitable surface. The power cord is approximately 1.5 meters long, providing sufficient length to reach the temperature controller installed near the aquarium.
The power supply accepts a voltage between 100 and 240 V at 50 to 60 Hz . The operating range indicated by AQUA-MEDIC extends from -10 to +40 °C.
Technical specifications of the 1000W Ceramic Infrared Heater
- Brand: AQUA-MEDIC
- Model: Ceramic Infrared Heater 1000 W
- Power: 1000 W
- Recommended aquarium volume: 2,000 to 3,000 liters
- Technology: Infrared heating with a large ceramic surface
- Compatibility: freshwater and saltwater aquariums
- Power supply: 100–240 V / 50–60 Hz
- Operating range: -10 to +40 °C
- Maximum immersion depth: 1000 mm
- Protection rating: IPX8
- Cable length: approximately 1500 mm
- Dimensions: approximately 293 x 160 x 16 mm
- Safety: protection against dry running
- Mounting: suction cup mount included
- Regulation: Must be used with an external temperature controller
