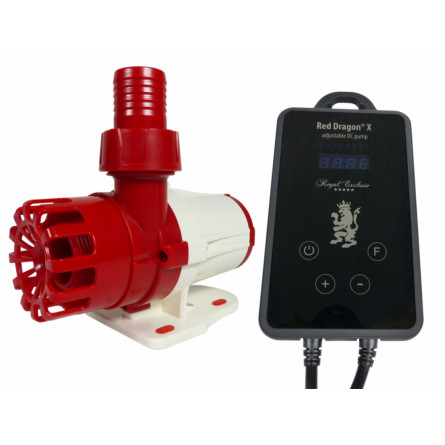

ROYAL EXCLUSIV - Red Dragon® X 85 Watt / 6.5m³

Technical data Pump Red Dragon ^® X 85 Watt 6.5 m³:

max. 85 Watt/h 5.5 meters. pressure height
Adjustable Speed Brushless DC Pump Revs
per minute (RPM) - Display
Adjustable in 8 steps from 8W to 83W
suction side 32 mm (1") - pressure side 32 mm (1")
Operating voltage: 100-240 Volt 50 -60 Hz (12V Technology)
Pump protection index: IP 68 Control unit: IP 66
Pump weight without controller: 1.25 kg
Height suction side: center 55 mm
Pump dimension: 90 mm wide / 170 (150 without suction protection) mm length / ~ 130 (165 with socket) mm height
Control unit dimensions: 20 mm wide / 90 mm long / ~ 170 mm high

• M4 grade 2 titanium screws resistant to salt water
• Saltwater resistant parabolic rubber feet for acoustic decoupling
• Extremely quiet brushless DC power pump with external power electronics
• High efficiency technology, Sine Wave for very quiet operation
• Input and output complete with connection, compact dimensions
• Easy to use and maintain, low risk of calcification
• compact design against vibrations and oscillations
• CE conformity, developed and built
• high quality touch screen with power function
  (protection against dry running, overheating, overvoltage, blocking, etc.)
• included in delivery:
  • Pump with 2 m supply line
  • Controller with 1.5m power line
  • Power plug with 1.5m power cable / rubber connector
  • with ingress protection
  • with 25 mm socket and 32 mm socket with O-rings
  • German/English manual
