Red Sea 's REEFER Series provide experienced aquarists with a solid foundation for building a fully-featured marine or reef system. The REEFER Series combine an aquarium without reinforcements in ultra-clear glass of a very contemporary design, an elegant cabinet and a complete filtration system including a decantation with Refugium Ready compartment, an automatic leveling system and the unique and silent system of Red Sea descent. The REEFER Series have been designed to be easy to use while allowing enthusiasts unlimited choice of lighting, filtration, brewing and other controllers to compose their own
Features :
- Extra white beveled glass aquarium
- Elegant “Marine-Spec” cabinet
- Professional decantation with constant level skimmer compartment and micron filters
- « Refugium-Ready » decanting with compartment for adjustable skimmer – Depending on models
- Quiet descent system with safety tube
- Integrated automatic evaporation compensation with tank
- Complete connection kit, no gluing required
*Note: Not all of these features are available on the REEFER 170/200XL, color of cabinet interior and piping may vary.
REEFER™ Features

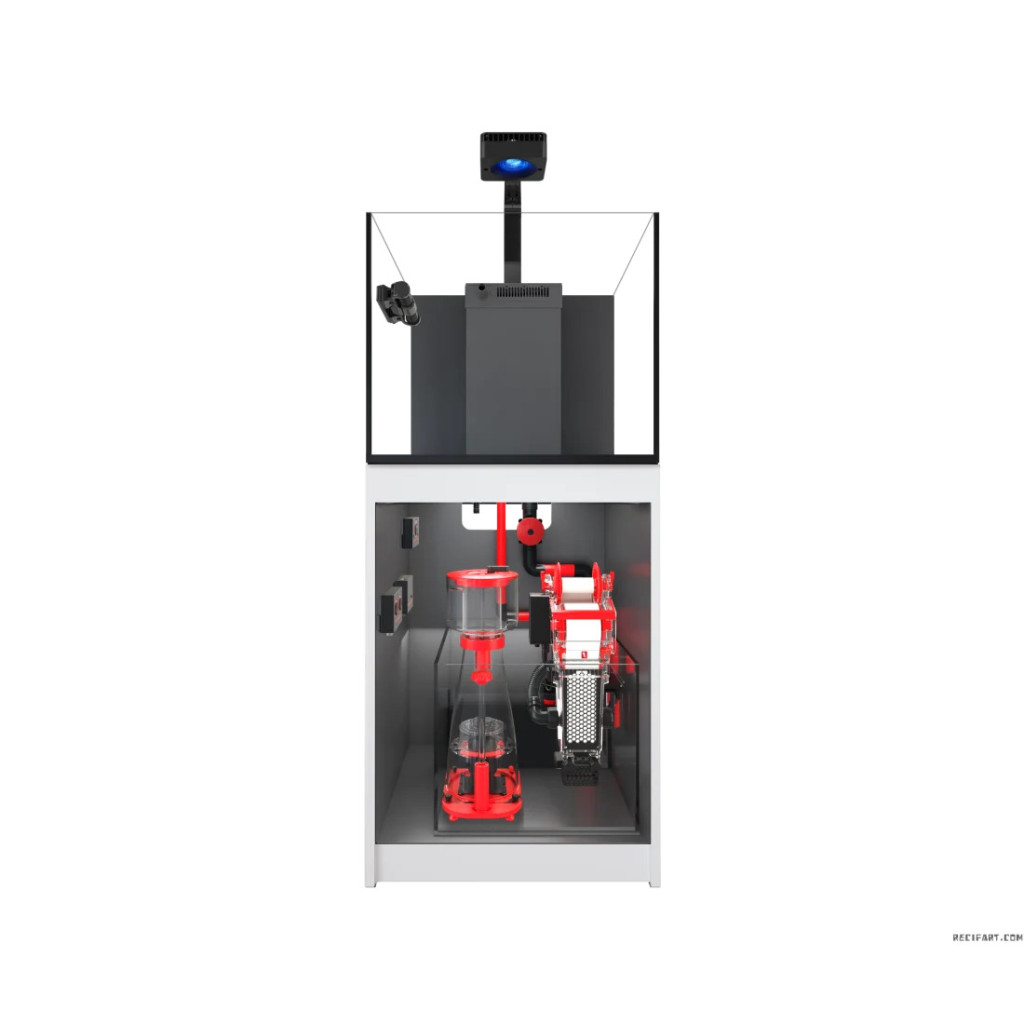

The aquarium rests on a recessed base which makes it "float" above the cabinet, which perfectly matches the contour of the glass.
The “marine-spec” laminate cabinet that houses the decantation (and on larger models a compartment dedicated to the cold unit) is equipped with water-resistant doors covered with epoxy paint.
REEFER water treatment system
The water treatment system is the basis for excellent water quality. Surface water is actively sucked into the settling via the water drop adjustment valve. Removable combs surround the top of the central overflow which houses the downpipe, return pipe and multi-directional nozzle.
In the event of blockage of the regulated down tube, a safety tube allows the water to return directly to the decantation.
On entering the decantation, the water passes through 225 micron mechanical filters. It then arrives in the constant level filtration compartment suitable for all skimmers and other reactors. In order to remove any bubbles that may escape from the skimmer, the water passes through an anti-bubble waterfall before the lift pump compartment.
To ensure a constant level in the lift pump compartment, all REEFER™ decanters incorporate automatic evaporation compensation allowing a constant flow of water through the entire system.
The connection kit is complete, all the tubes are with quick couplings and do not require any gluing.
REEFER™ classic models |
| Features | Nano | 170 | 250 | 350 |
| Main equipment | Front face and sides in extra white glass |  | | | |
| Extra white glass thickness of the front face (mm) | 8 (5/16") | 10 (3/8") | 12 (1/2") | 12 (1/2") |
| Integrated overflow | | | | |
| Integrated automatic evaporation compensation | | | | |
| System Volumes | Aquarium water volume (L) | 77 | 130 | 204 | 275 |
| Volume of water from settling in cabinet (L) | 28 | 35 | 40 | 70 |
| Total system water volume (L) | 105 | 165 | 244 | 345 |
| Volume of water in the osmosis water tank (L) | 4.7 | 5.4 | 10.9 | 18 |
| System sizes | Aquarium length (cm) | 45 | 60 | 90 | 120 |
| Height of the aquarium (cm) | 45 | 50 | 53 | 53 |
| Aquarium width (cm) | 45 | 50 | 50 | 50 |
| Total height of the system on its cabinet (cm) | 132 | 137 | 140 | 140 |
| Dimensions of the decantation | Water height (cm) | 20 | 20 | 17-23 | 17-23 |
| Skimmer compartment with wall (cm) | 24x21 | 30x25 | 25x25 | 25x36 |
| Skimmer compartment without wall (cm) | 24x21 | 30x25 | 42x25 |
| Lift pump compartment (cm) | 42x15 | 49x15 | 42x15 | 49x15 |
| lift pump | 3/4″ connection | 16mm | 16mm | 16mm | 16mm |
| Recommended power (L/h)(pump not included) | 2000
(530 gph) | 2000
(530 gph) | 2500
(660 gph) | 3000
(790 gph) |
