Ultra Compact Design

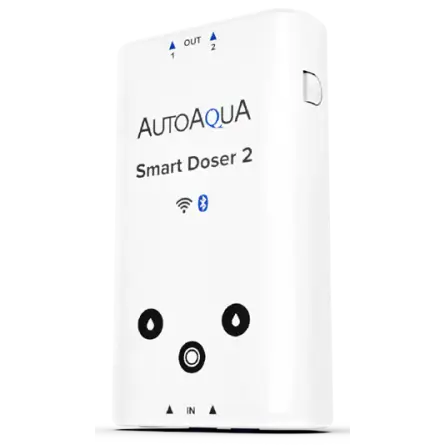

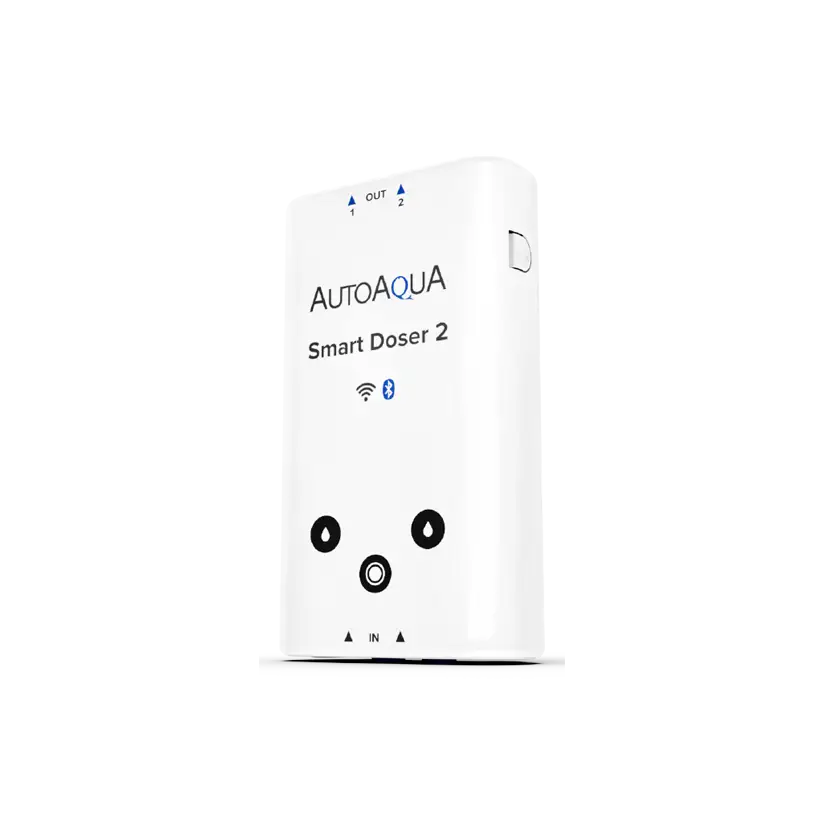

Featuring a compact and high-performance peristaltic pump, the Smart Doser offers an elegant design in an ultra-compact and lightweight housing (35 mm / 1.4”). Its small size makes it easy to install almost anywhere.
Product absence detector
An optical sensor detects when the supplement container is empty and triggers an instant alarm, eliminating interruptions in your dosing program.
Ease of use
Thanks to programming via the user-friendly aquaLine app, it is easy to use the Smart Doser for various functions and to be alerted instantly in the event of a problem.
Dual Wifi and Bluetooth connectivity
.png)
Featuring smart dual connectivity, it allows for super-fast installation and ensures you stay connected wherever you are. With programming via the aquaLine app, the Smart Doser can be programmed for many installations for automated dosing, with alerts and reminders.
No more complicated settings and calculations!
Easy programming of dosage in automatic or manual mode
Precise dosing without tedious programming. Automatic mode allows you to create a tailor-made dosing program, automatically distributing dosing time to avoid interactions between supplement products.
No more complicated settings and calculations!
- All programs can be set to run daily
- Elimination of schedule conflicts and dosage overlap
- 2 operating modes: automatic and manual
- 3 daily dosing schedules: day, night, 24 hours
- Dosage volumes will be spread over a specified period
Pump grouping!
Simultaneous control of multiple devices
The innovative Cloud system allows multiple devices to be synchronized to a single dosing schedule, eliminating conflicts and providing an optimized preset program.
Features :
- Simultaneous control of devices within the same group
- Connection of up to 8 pumps for different dosing scenarios by Smart Doser
- Multiple Program Management by AWS Cloud System
Additional features
Feeding mode: Suspension of dosage during coral feeding.
Calibration: Calibration with time compensation.
Power Failure and Restore: Retains settings with powerful memory without requiring a battery.
Intuitive interface: Exceptional user experience thanks to a simple interface.
Peace of mind: Instant notification for any problem detected by aquaLine, ensuring perfect dosage execution.
What's in the box of the Auto Aqua - Smart Doser 4
- Smart Doser 3
- Mounting bracket for the controller
- Fixing screws (x2)
- Universal power supply
- Mounting bracket for 2 pipes
- Clips for pipe passage
- Dosing cylinder for pump calibration
- Pipes (blue, green) 300xm (x2)
Technical data
Power :
- Input: 100-240 VAC 50-60 Hz
- Output: 12 VDC / 1 A
- Electric cable length: 180 cm
Peristaltic pump:
- Power: 2 W @ 12 VDC
- Suction: 610 cm
- Maximum flow rate: 21 ml/min
- Accuracy: +/- 2%
- Pipe diameter: 4/6mm
- Accuracy: +/- 2%
Dimensions:
- (L x H x W): 143mm x 82mm x 35mm
