Lighting area:
The illumination surface of the Maxspect RSX 200W is approximately 110cm x 60cm x 60cm
Technical characteristics :
RSX 200W
Dimensions (L x W x H): 839 x 260 x 170 mm
Weight: 4kg
Power supply :
Meanwell LRS-200-24
Input Voltage / Current: 4A/115VAC - 2.2A/230VAC
Output voltage / Current: 24V 8.8A
Weight: 1.3kg
New range of 4 Maxspect RSX LED ramps with a power ranging from 100 to 300 W. The LEDs are distributed in spots of 50 W each, so each ramp has 2 for the 100w to 6 for the 300w. Integrated controller with OLED display in each ramp. A standard control or master / slave system is possible as in the Recurve Maxspect led range. This makes it very easy to synchronize different ramps connected to the same device.
The RSX is compatible with the Syna-G application thanks to the Maxspect ICV6 module (sold separately) allowing wireless control via IOS or ANDROID devices.
Different pre-recorded automatic lighting modes or manual mode to be configured. Automatic temperature controlled cooling fan. High Clarity Mitsubishi Acrylic Lens, Nano Particle Based Reflector, High Power LED Group.
With adjustable fixing feet to place on the walls of the aquarium. Kit of suspension system in OPTION.

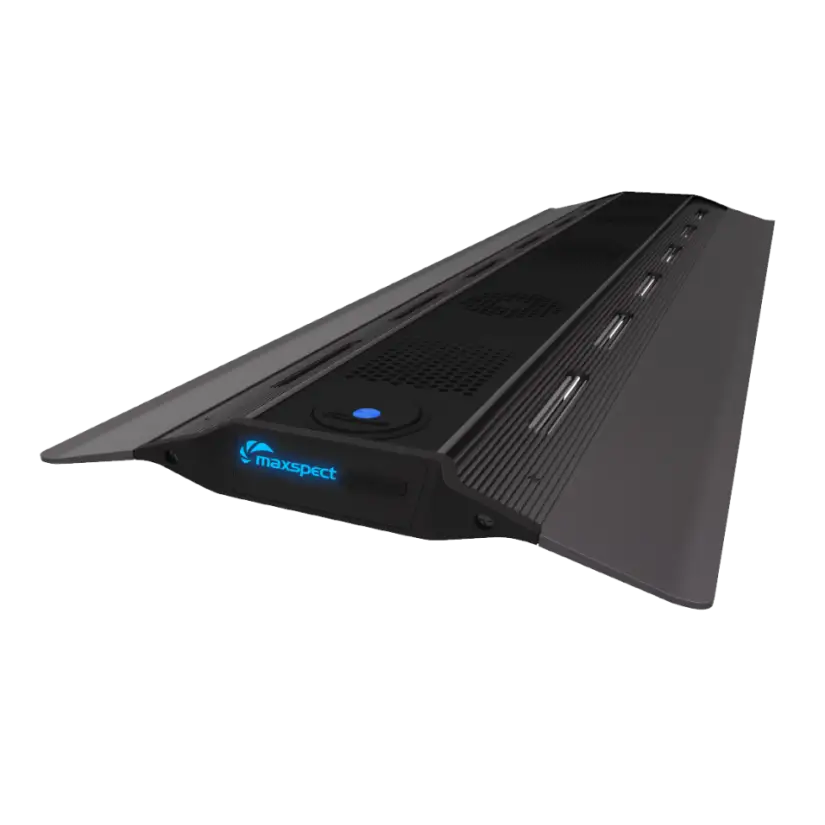

The MAXSPECT RSX utilizes a chassis constructed from architectural grade 6063 aluminum alloy with CNC-processed recesses. Its ingenious aerodynamic design allows cool air to be drawn in from below and the chassis serves as a large heat sink.
Integrated controller
Possibility of using several ramps in mode MASTER / SLAVE.
Controllable* by phone or tablet using the Android or iOS application, SYNA-G.
Optional control by iOS and Android requires an ICV6, sold separately.
