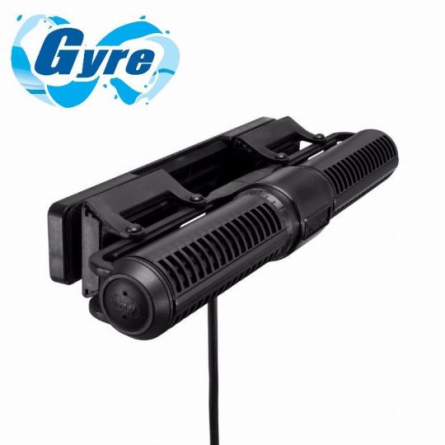

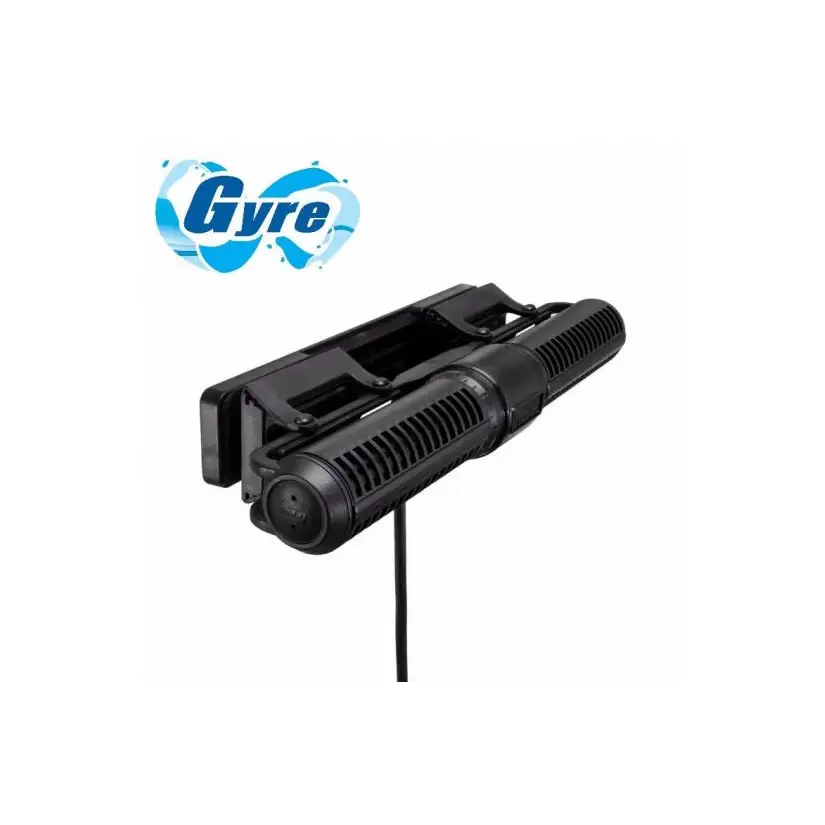

Powerful circulation pump of 21000-22500 L/h for aquarium from 750 to 3800 liters. Maximum consumption 80W.
Warning: this pump works only thanks to the XFC280 Controller.
Circulating pumps are great for making waves. This wave motion is spectacular to see but it moves the majority of the water vertically in the aquarium, while horizontal motion is relatively small, especially near the bottom of the tank. aquarium, as shown in the diagram opposite.
Gyre in horizontal position |
Gyre in vertical position
|
While gyre generators excel at moving water from one side of the aquarium to the other. The current produced in this way is strong enough for the water to reach the other side, thus creating a continuous circulation in the aquarium, ie a gyre flow.
A. Dead zone with relatively low water movement.
B. Very strong current in the center, which makes placement of corals very difficult
C. Very weak current at the other end of the aquarium.
A. Virtually no dead zone.
B. Flux distributed evenly throughout the aquarium
C. Water flows to the other side to create full circulation, i.e. producing a Gyre-Flow
The current generated by the Maxspect Gyre is ideal for most corals.
Thanks to its cross-flow technology, it allows a uniform distribution of the flow thus avoiding dead zones in the aquarium.
It allows flow adjustment in 2 different directions at the same time
The Maxspect Gyre also allows flow reversal.
normal flow |
reverse flow |
The controller changes and has many more functions, allowing to control 2 Gyre pumps at the same time!
The pumps remain the same.
Connecting the Gyre XF230 and XF250 |
Connection of Gyre XF280
|
Example of a 24-hour cycle.
Preset 1 – The Lunar Tidal Cycle (LTC) The Lunar Tidal Cycle (LTC) is a 24-hour cycle that mimics the current during high and low ocean tides.
|
Preset 2 – The Oceanic Gyre Cycle (OGC) The Oceanic Gyre Cycle (OGC) is a 24 hour cycle that creates an alternating and gentle Gyre circulation within the aquarium. |
XF230 |
XF250 |
XF280 |
|
Consumption : |
8w-35w |
8w-60w |
10w-80w |
Debit : |
8000-9000L/h |
18000-20000L/h |
21000-22500L/h |
For aquariums of: |
100-400L |
200-3000L |
750-3800L |
Feed : |
100-240V / 50-60Hz |
100-240V / 50-60Hz |
100-240V / 50-60Hz |
Dimensions (LxWxH): |
255mmx75mmx40mm |
300mm×73mm×60mm |
378mm x 95mm x 52mm |
Weight : |
650g |
850g |
1000g |
Cable length: |
|||
> Pump controller |
3m |
3m |
3m |
> Food |
1.5m |
1.5m |
1.5m |
Fixing magnet for glass thickness up to: |
|||
> Standard fixing |
20mm |
20mm |
30mm |
> Reinforced fixing |
25mm |
25mm |
38mm |
